A 3D cloud and its associated features (color, normals, scalar fields, etc.) More...

#include <ccPointCloud.h>

Inheritance diagram for ccPointCloud:

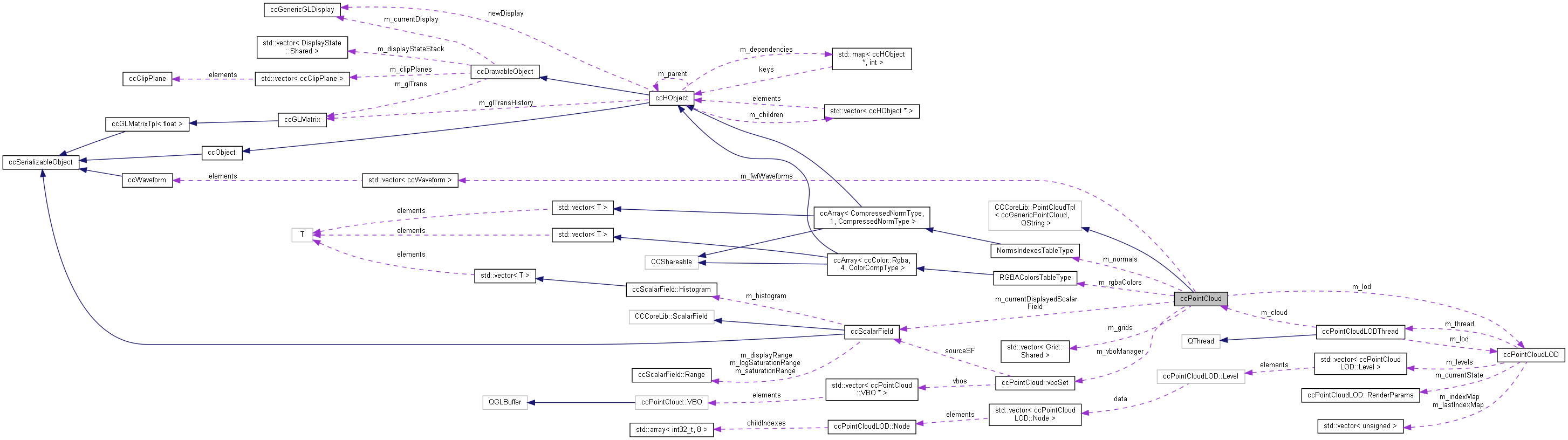

Collaboration diagram for ccPointCloud:

[legend]

Classes
struct	Grid
	Grid structure. More...

struct	UnrollBaseParams

struct	UnrollConeParams

struct	UnrollCylinderParams

class	VBO

struct	vboSet
	VBO set. More...

Public Types
enum	CLONE_WARNINGS { WRN_OUT_OF_MEM_FOR_COLORS = 1 , WRN_OUT_OF_MEM_FOR_NORMALS = 2 , WRN_OUT_OF_MEM_FOR_SFS = 4 , WRN_OUT_OF_MEM_FOR_FWF = 8 }
	Warnings for the partialClone method (bit flags)

enum	UnrollMode { CYLINDER = 0 , CONE = 1 , STRAIGHTENED_CONE = 2 , STRAIGHTENED_CONE2 = 3 }

using	BaseClass = CCCoreLib::PointCloudTpl< ccGenericPointCloud, QString >
	Base class (shortcut)

using	FWFDescriptorSet = QMap< uint8_t, WaveformDescriptor >
	Waveform descriptors set.

using	FWFDataContainer = std::vector< uint8_t >
	Waveform data container.

using	SharedFWFDataContainer = QSharedPointer< const FWFDataContainer >

Public Member Functions
	ccPointCloud (QString name=QString(), unsigned uniqueID=ccUniqueIDGenerator::InvalidUniqueID) throw ()
	Default constructor. More...

	~ccPointCloud () override
	Default destructor.

CC_CLASS_ENUM	getClassID () const override
	Returns class ID.

ccPointCloud *	partialClone (const CCCoreLib::ReferenceCloud selection, int warnings=nullptr) const
	Creates a new point cloud object from a ReferenceCloud (selection) More...

ccPointCloud *	cloneThis (ccPointCloud *destCloud=nullptr, bool ignoreChildren=false)
	Clones this entity. More...

ccGenericPointCloud *	clone (ccGenericPointCloud *destCloud=nullptr, bool ignoreChildren=false) override

const ccPointCloud &	operator+= (ccPointCloud *)
	Fuses another 3D entity with this one. More...

void	clear () override
	Clears the entity from all its points and features. More...

void	unallocatePoints ()
	Erases the cloud points. More...

void	unallocateColors ()
	Erases the cloud colors.

void	unallocateNorms ()
	Erases the cloud normals.

void	colorsHaveChanged ()
	Notify a modification of color / scalar field display parameters or contents.

void	normalsHaveChanged ()
	Notify a modification of normals display parameters or contents.

void	pointsHaveChanged ()
	Notify a modification of points display parameters or contents.

bool	reserveThePointsTable (unsigned _numberOfPoints)
	Reserves memory to store the points coordinates. More...

bool	reserveTheRGBTable ()
	Reserves memory to store the RGB colors. More...

bool	resizeTheRGBTable (bool fillWithWhite=false)
	Resizes the RGB colors array. More...

bool	reserveTheNormsTable ()
	Reserves memory to store the compressed normals. More...

bool	resizeTheNormsTable ()
	Resizes the compressed normals array. More...

bool	reserve (unsigned numberOfPoints) override
	Reserves memory for all the active features. More...

bool	resize (unsigned numberOfPoints) override
	Resizes all the active features arrays. More...

void	shrinkToFit ()
	Removes unused capacity.

ccScalarField *	getCurrentDisplayedScalarField () const
	Returns the currently displayed scalar (or 0 if none)

int	getCurrentDisplayedScalarFieldIndex () const
	Returns the currently displayed scalar field index (or -1 if none)

void	setCurrentDisplayedScalarField (int index)
	Sets the currently displayed scalar field. More...

void	deleteScalarField (int index) override

void	deleteAllScalarFields () override

int	addScalarField (const char *uniqueName) override

bool	sfColorScaleShown () const
	Returns whether color scale should be displayed or not.

void	showSFColorsScale (bool state)
	Sets whether color scale should be displayed or not.

size_t	gridCount () const
	Returns the number of associated grids.

Grid::Shared &	grid (size_t gridIndex)
	Returns an associated grid.

const Grid::Shared &	grid (size_t gridIndex) const
	Returns an associated grid (const version)

bool	addGrid (Grid::Shared grid)
	Adds an associated grid.

void	removeGrids ()
	Remove all associated grids.

ccMesh *	triangulateGrid (const Grid &grid, double minTriangleAngle_deg=0.0) const
	Meshes a scan grid. More...

bool	computeNormalsWithGrids (double minTriangleAngle_deg=1.0, ccProgressDialog *pDlg=nullptr)
	Compute the normals with the associated grid structure(s) More...

bool	orientNormalsWithGrids (ccProgressDialog *pDlg=nullptr)
	Orient the normals with the associated grid structure(s)

bool	orientNormalsTowardViewPoint (CCVector3 &VP, ccProgressDialog *pDlg=nullptr)
	Normals are forced to point to O.

bool	computeNormalsWithOctree (CCCoreLib::LOCAL_MODEL_TYPES model, ccNormalVectors::Orientation preferredOrientation, PointCoordinateType defaultRadius, ccProgressDialog *pDlg=nullptr)
	Compute the normals by approximating the local surface around each point.

bool	orientNormalsWithMST (unsigned kNN=6, ccProgressDialog *pDlg=nullptr)
	Orient the normals with a Minimum Spanning Tree.

bool	orientNormalsWithFM (unsigned char level, ccProgressDialog *pDlg=nullptr)
	Orient normals with Fast Marching.

bool	hasFWF () const
	Returns whether the cloud has associated Full WaveForm data.

ccWaveformProxy	waveformProxy (unsigned index) const
	Returns a proxy on a given waveform.

FWFDescriptorSet &	fwfDescriptors ()
	Gives access to the FWF descriptors.

const FWFDescriptorSet &	fwfDescriptors () const
	Gives access to the FWF descriptors (const version)

std::vector< ccWaveform > &	waveforms ()
	Gives access to the associated FWF data.

const std::vector< ccWaveform > &	waveforms () const
	Gives access to the associated FWF data (const version)

bool	reserveTheFWFTable ()
	Reserves the FWF table.

bool	resizeTheFWFTable ()
	Resizes the FWF table.

SharedFWFDataContainer &	fwfData ()
	Gives access to the associated FWF data container.

const SharedFWFDataContainer &	fwfData () const
	Gives access to the associated FWF data container (const version)

bool	compressFWFData ()
	Compresses the associated FWF data container. More...

bool	computeFWFAmplitude (double &minVal, double &maxVal, ccProgressDialog *pDlg=nullptr) const
	Computes the maximum amplitude of all associated waveforms.

void	clearFWFData ()
	Clears all associated FWF data.

CCVector3	computeGravityCenter ()
	Returns the cloud gravity center. More...

void	invalidateBoundingBox () override

void	getDrawingParameters (glDrawParams &params) const override

unsigned	getUniqueIDForDisplay () const override

bool	hasColors () const override

bool	hasNormals () const override

bool	hasScalarFields () const override

bool	hasDisplayedScalarField () const override

void	removeFromDisplay (const ccGenericGLDisplay *win) override

void	setDisplay (ccGenericGLDisplay *win) override

unsigned char	testVisibility (const CCVector3 &P) const override

bool	normalsAvailable () const override

const CCVector3 *	getNormal (unsigned pointIndex) const override

const ccColor::Rgb *	geScalarValueColor (ScalarType d) const override

const ccColor::Rgb *	getPointScalarValueColor (unsigned pointIndex) const override

ScalarType	getPointDisplayedDistance (unsigned pointIndex) const override

const ccColor::Rgba &	getPointColor (unsigned pointIndex) const override

const CompressedNormType &	getPointNormalIndex (unsigned pointIndex) const override

const CCVector3 &	getPointNormal (unsigned pointIndex) const override

CCCoreLib::ReferenceCloud *	crop (const ccBBox &box, bool inside=true) override

void	scale (PointCoordinateType fx, PointCoordinateType fy, PointCoordinateType fz, CCVector3 center=CCVector3(0, 0, 0)) override

ccGenericPointCloud *	createNewCloudFromVisibilitySelection (bool removeSelectedPoints=false, VisibilityTableType *visTable=nullptr, bool silent=false) override

void	applyRigidTransformation (const ccGLMatrix &trans) override

void	refreshBB () override

void	enableVisibilityCheck (bool state)
	Sets whether visibility check is enabled or not (e.g. during distances computation) More...

bool	hasSensor () const
	Returns whether the mesh as an associated sensor or not.

QSharedPointer< CCCoreLib::ReferenceCloud >	computeCPSet (ccGenericPointCloud &otherCloud, CCCoreLib::GenericProgressCallback *progressCb=nullptr, unsigned char octreeLevel=0)
	Comptes the closest point of this cloud relatively to another cloud. More...

bool	interpolateColorsFrom (ccGenericPointCloud cloud, CCCoreLib::GenericProgressCallback progressCb=nullptr, unsigned char octreeLevel=0)
	Interpolate colors from another cloud (nearest neighbor only)

void	setPointColor (unsigned pointIndex, const ccColor::Rgba &col)
	Sets a particular point color. More...

void	setPointColor (unsigned pointIndex, const ccColor::Rgb &col)
	Sets a particular point color. More...

void	setPointNormalIndex (unsigned pointIndex, CompressedNormType norm)
	Sets a particular point compressed normal. More...

void	setPointNormal (unsigned pointIndex, const CCVector3 &N)
	Sets a particular point normal (shortcut) More...

void	addNormIndex (CompressedNormType index)
	Pushes a compressed normal vector. More...

void	addNorm (const CCVector3 &N)
	Pushes a normal vector on stack (shortcut) More...

void	addNormAtIndex (const PointCoordinateType *N, unsigned index)
	Adds a normal vector to the one at a specific index. More...

void	setNormsTable (NormsIndexesTableType *norms)
	Sets the (compressed) normals table.

bool	convertNormalToRGB ()
	Converts normals to RGB colors. More...

bool	convertNormalToDipDirSFs (ccScalarField dipSF, ccScalarField dipDirSF)
	Converts normals to two scalar fields: 'dip' and 'dip direction'. More...

void	addColor (const ccColor::Rgba &C)
	Pushes an RGBA color on stack. More...

void	addColor (const ccColor::Rgb &C)
	Pushes an RGB color on stack. More...

void	addColor (ColorCompType r, ColorCompType g, ColorCompType b, ColorCompType a=ccColor::MAX)
	Pushes an RGB color on stack (shortcut) More...

void	addGreyColor (ColorCompType g)
	Pushes a grey color on stack (shortcut) More...

bool	convertRGBToGreyScale ()
	Converts RGB to grey scale colors. More...

bool	colorize (float r, float g, float b, float a=1.0f)
	Multiplies all color components of all points by coefficients. More...

bool	setRGBColorByHeight (unsigned char heightDim, ccColorScale::Shared colorScale)
	Assigns color to points proportionally to their 'height'. More...

bool	setRGBColorByBanding (unsigned char dim, double freq)
	Assigns color to points by 'banding'. More...

bool	convertCurrentScalarFieldToColors (bool mixWithExistingColor=false)
	Converts current scalar field (values & display parameters) to RGB colors. More...

bool	setColor (ColorCompType r, ColorCompType g, ColorCompType b, ColorCompType a=ccColor::MAX)
	Set a unique color for the whole cloud (shortcut) More...

bool	setColor (const ccColor::Rgb &col)
	Set a unique color for the whole cloud (RGB version) More...

bool	setColor (const ccColor::Rgba &col)
	Set a unique color for the whole cloud (RGBA version) More...

void	invertNormals ()
	Inverts normals (if any)

void	translate (const CCVector3 &T)
	Translates cloud. More...

ccPointCloud *	filterPointsByScalarValue (ScalarType minVal, ScalarType maxVal, bool outside=false)
	Filters out points whose scalar values falls into an interval. More...

void	hidePointsByScalarValue (ScalarType minVal, ScalarType maxVal)
	Hides points whose scalar values falls into an interval. More...

ccPointCloud *	unroll (UnrollMode mode, UnrollBaseParams params, bool exportDeviationSF=false, double startAngle_deg=0.0, double stopAngle_deg=360.0, CCCoreLib::GenericProgressCallback progressCb=nullptr) const
	Unrolls the cloud and its normals on a cylinder or a cone. More...

void	addColorRampInfo (CC_DRAW_CONTEXT &context)
	Adds associated SF color ramp info to current GL context.

int	addScalarField (ccScalarField *sf)
	Adds an existing scalar field to this cloud. More...

RGBAColorsTableType *	rgbaColors () const
	Returns pointer on RGBA colors table.

NormsIndexesTableType *	normals () const
	Returns pointer on compressed normals indexes table.

CCCoreLib::ReferenceCloud *	crop2D (const ccPolyline *poly, unsigned char orthoDim, bool inside=true)
	Crops the cloud inside (or outside) a 2D polyline. More...

const ccPointCloud &	append (ccPointCloud *cloud, unsigned pointCountBefore, bool ignoreChildren=false)
	Appends a cloud to this one. More...

bool	enhanceRGBWithIntensitySF (int sfIdx, bool useCustomIntensityRange=false, double minI=0.0, double maxI=1.0)
	Enhances the RGB colors with the current scalar field (assuming it's intensities)

bool	exportCoordToSF (bool exportDims[3])
	Exports the specified coordinate dimension(s) to scalar field(s)

bool	exportNormalToSF (bool exportDims[3])
	Exports the specified normal dimension(s) to scalar field(s)

void	releaseVBOs ()
	Release VBOs.

size_t	vboSize () const
	Returns the VBOs size (if any)

bool	initLOD ()
	Initializes the LOD structure. More...

void	clearLOD ()
	Clears the LOD structure.

Static Public Member Functions
static ccPointCloud *	From (const CCCoreLib::GenericIndexedCloud cloud, const ccGenericPointCloud sourceCloud=nullptr)
	Creates a new point cloud object from a GenericIndexedCloud. More...

static ccPointCloud *	From (CCCoreLib::GenericCloud cloud, const ccGenericPointCloud sourceCloud=nullptr)
	Creates a new point cloud object from a GenericCloud. More...

Protected Member Functions
void	drawMeOnly (CC_DRAW_CONTEXT &context) override

void	applyGLTransformation (const ccGLMatrix &trans) override

bool	toFile_MeOnly (QFile &out) const override

bool	fromFile_MeOnly (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override

void	notifyGeometryUpdate () override

void	swapPoints (unsigned firstIndex, unsigned secondIndex) override

bool	updateVBOs (const CC_DRAW_CONTEXT &context, const glDrawParams &glParams)
	Init/updates VBOs.

void	glChunkVertexPointer (const CC_DRAW_CONTEXT &context, size_t chunkIndex, unsigned decimStep, bool useVBOs)

void	glChunkColorPointer (const CC_DRAW_CONTEXT &context, size_t chunkIndex, unsigned decimStep, bool useVBOs)

void	glChunkSFPointer (const CC_DRAW_CONTEXT &context, size_t chunkIndex, unsigned decimStep, bool useVBOs)

void	glChunkNormalPointer (const CC_DRAW_CONTEXT &context, size_t chunkIndex, unsigned decimStep, bool useVBOs)

Protected Attributes
RGBAColorsTableType *	m_rgbaColors
	Colors.

NormsIndexesTableType *	m_normals
	Normals (compressed)

bool	m_sfColorScaleDisplayed
	Specifies whether current scalar field color scale should be displayed or not.

ccScalarField *	m_currentDisplayedScalarField
	Currently displayed scalar field.

int	m_currentDisplayedScalarFieldIndex
	Currently displayed scalar field index.

std::vector< Grid::Shared >	m_grids
	Associated grid structure.

bool	m_visibilityCheckEnabled
	Whether visibility check is available or not (during comparison) More...

vboSet	m_vboManager
	Set of VBOs attached to this cloud.

ccPointCloudLOD *	m_lod
	L.O.D. structure.

FWFDescriptorSet	m_fwfDescriptors
	General waveform descriptors.

std::vector< ccWaveform >	m_fwfWaveforms
	Per-point waveform accessors.

SharedFWFDataContainer	m_fwfData
	Waveforms raw data storage.

Detailed Description

A 3D cloud and its associated features (color, normals, scalar fields, etc.)

A point cloud can have multiple features:

colors (RGB)
normals (compressed)
scalar fields
an octree structure
per-point visibility information (to hide/display subsets of points)
other children objects (meshes, calibrated pictures, etc.)

Constructor & Destructor Documentation

◆ ccPointCloud()

ccPointCloud::ccPointCloud	(	QString	name = `QString()`,
		unsigned	uniqueID = `ccUniqueIDGenerator::InvalidUniqueID`
	)
throw	(
	)

Default constructor.

Creates an empty cloud without any feature. Each of them should be specifically instantiated/created (once the points have been added to this cloud, at least partially).

Parameters

name	cloud name (optional)
uniqueID	unique ID (handle with care)

Member Function Documentation

◆ addColor() [1/3]

void ccPointCloud::addColor	(	ColorCompType	r,
		ColorCompType	g,
		ColorCompType	b,
		ColorCompType	a = `ccColor::MAX`
	)

inline

Pushes an RGB color on stack (shortcut)

Parameters

r	red component
g	green component
b	blue component
a	alpha component

◆ addColor() [2/3]

void ccPointCloud::addColor ( const ccColor::Rgb & C )

inline

Pushes an RGB color on stack.

Will be converted to an RGBA color automatically.

Parameters

C RGB color

◆ addColor() [3/3]

void ccPointCloud::addColor ( const ccColor::Rgba & C )

Pushes an RGBA color on stack.

Parameters

C	RGBA color

◆ addGreyColor()

void ccPointCloud::addGreyColor ( ColorCompType g )

inline

Pushes a grey color on stack (shortcut)

Shortcut: color is converted to RGB(g, g, g)

Parameters

g	grey component

◆ addNorm()

void ccPointCloud::addNorm ( const CCVector3 & N )

Pushes a normal vector on stack (shortcut)

Parameters

N	normal vector

◆ addNormAtIndex()

void ccPointCloud::addNormAtIndex	(	const PointCoordinateType *	N,
		unsigned	index
	)

Adds a normal vector to the one at a specific index.

The resulting sum is automatically normalized and compressed.

Parameters

N	normal vector to add (size: 3)
index	normal index to modify

◆ addNormIndex()

void ccPointCloud::addNormIndex ( CompressedNormType index )

Pushes a compressed normal vector.

Parameters

index compressed normal vector

◆ addScalarField()

int ccPointCloud::addScalarField ( ccScalarField * sf )

Adds an existing scalar field to this cloud.

Warning: the cloud takes ownership of it!

Parameters

sf	existing scalar field

Returns: index of added scalar field (or -1 if an error occurred)

◆ append()

const ccPointCloud & ccPointCloud::append	(	ccPointCloud *	cloud,
		unsigned	pointCountBefore,
		bool	ignoreChildren = `false`
	)

Appends a cloud to this one.

Same as the += operator with pointCountBefore == size()

Parameters

cloud	cloud to be added
pointCountBefore	the number of points previously contained in this cloud
ignoreChildren	whether to copy input cloud's children or not

Returns: the resulting point cloud

◆ clear()

void ccPointCloud::clear ( )

override

Clears the entity from all its points and features.

Display parameters are also reset to their default values.

◆ cloneThis()

ccPointCloud * ccPointCloud::cloneThis	(	ccPointCloud *	destCloud = `nullptr`,
		bool	ignoreChildren = `false`
	)

Clones this entity.

All the main features of the entity are cloned, except from the octree and the points visibility information.

Parameters

destCloud	[optional] the destination cloud can be provided here
ignoreChildren	[optional] whether to ignore the cloud's children or not (in which case they will be cloned as well)

Returns: a copy of this entity

◆ colorize()

bool ccPointCloud::colorize	(	float	r,
		float	g,
		float	b,
		float	a = `1.0f`
	)

Multiplies all color components of all points by coefficients.

If the cloud has no color, all points are considered white and the color array is automatically allocated.

Parameters

r	red component
g	green component
b	blue component
a	alpha component

Returns: success

◆ compressFWFData()

bool ccPointCloud::compressFWFData ( )

Compresses the associated FWF data container.

As the container is shared, the compressed version will be potentially added to the memory resulting in a decrease of the available memory...

◆ computeCPSet()

QSharedPointer< CCCoreLib::ReferenceCloud > ccPointCloud::computeCPSet	(	ccGenericPointCloud &	otherCloud,
		CCCoreLib::GenericProgressCallback *	progressCb = `nullptr`,
		unsigned char	octreeLevel = `0`
	)

Comptes the closest point of this cloud relatively to another cloud.

The output (reference) clouds will have as many points as this cloud (with the indexes pointing on the closest point in the other cloud)

◆ computeGravityCenter()

CCVector3 ccPointCloud::computeGravityCenter ( )

Returns the cloud gravity center.

Returns: gravity center

◆ computeNormalsWithGrids()

bool ccPointCloud::computeNormalsWithGrids	(	double	minTriangleAngle_deg = `1.0`,
		ccProgressDialog *	pDlg = `nullptr`
	)

Compute the normals with the associated grid structure(s)

Can also orient the normals in the same run.

◆ convertCurrentScalarFieldToColors()

bool ccPointCloud::convertCurrentScalarFieldToColors ( bool mixWithExistingColor = false )

Converts current scalar field (values & display parameters) to RGB colors.

Returns: success

◆ convertNormalToDipDirSFs()

bool ccPointCloud::convertNormalToDipDirSFs	(	ccScalarField *	dipSF,
		ccScalarField *	dipDirSF
	)

Converts normals to two scalar fields: 'dip' and 'dip direction'.

One input scalar field may be empty if the corresponding value is not required

Parameters

[out]	dipSF	dip values
[out]	dipDirSF	dip direction values

Returns: success

◆ convertNormalToRGB()

bool ccPointCloud::convertNormalToRGB ( )

Converts normals to RGB colors.

See ccNormalVectors::ConvertNormalToRGB

Returns: success

◆ convertRGBToGreyScale()

bool ccPointCloud::convertRGBToGreyScale ( )

Converts RGB to grey scale colors.

Returns: success

◆ createNewCloudFromVisibilitySelection()

ccGenericPointCloud * ccPointCloud::createNewCloudFromVisibilitySelection	(	bool	removeSelectedPoints = `false`,
		VisibilityTableType *	visTable = `nullptr`,
		bool	silent = `false`
	)

override

Warning: if removeSelectedPoints is true, any attached octree will be deleted.

◆ crop2D()

CCCoreLib::ReferenceCloud * ccPointCloud::crop2D	(	const ccPolyline *	poly,
		unsigned char	orthoDim,
		bool	inside = `true`
	)

Crops the cloud inside (or outside) a 2D polyline.

Warning: Always returns a selection (potentially empty) if successful.

Parameters

poly	cropping polyline
orthoDim	dimension orthogonal to the plane in which the segmentation should occur (X=0, Y=1, Z=2)
inside	whether selected points are inside or outside the polyline

Returns: points falling inside (or outside) as a selection

◆ enableVisibilityCheck()

void ccPointCloud::enableVisibilityCheck ( bool state )

inline

Sets whether visibility check is enabled or not (e.g. during distances computation)

See ccPointCloud::testVisibility.

◆ filterPointsByScalarValue()

ccPointCloud * ccPointCloud::filterPointsByScalarValue	(	ScalarType	minVal,
		ScalarType	maxVal,
		bool	outside = `false`
	)

Filters out points whose scalar values falls into an interval.

Threshold values should be expressed relatively to the current displayed scalar field.

Parameters

minVal	minimum value
maxVal	maximum value
outside	whether to select the points inside or outside of the specified interval

Returns: resulting cloud (remaining points)

◆ From() [1/2]

ccPointCloud * ccPointCloud::From	(	CCCoreLib::GenericCloud *	cloud,
		const ccGenericPointCloud *	sourceCloud = `nullptr`
	)

static

Creates a new point cloud object from a GenericCloud.

"GenericCloud" is a very simple and light interface from CCCoreLib. It is meant to give access to points coordinates of any cloud (on the condition it implements the GenericCloud interface of course). See CClib documentation for more information about GenericClouds. As the GenericCloud interface is very simple, only points are imported. Note: throws an 'int' exception in case of error (see CTOR_ERRORS)

Parameters

cloud	a GenericCloud structure
sourceCloud	cloud from which main parameters will be imported (optional)

◆ From() [2/2]

ccPointCloud * ccPointCloud::From	(	const CCCoreLib::GenericIndexedCloud *	cloud,
		const ccGenericPointCloud *	sourceCloud = `nullptr`
	)

static

Creates a new point cloud object from a GenericIndexedCloud.

"GenericIndexedCloud" is an extension of GenericCloud (from CCCoreLib) which provides a const random accessor to points. See CClib documentation for more information about GenericIndexedCloud. As the GenericIndexedCloud interface is very simple, only points are imported. Note: throws an 'int' exception in case of error (see CTOR_ERRORS)

Parameters

cloud	a GenericIndexedCloud structure
sourceCloud	cloud from which main parameters will be imported (optional)

◆ hidePointsByScalarValue()

void ccPointCloud::hidePointsByScalarValue	(	ScalarType	minVal,
		ScalarType	maxVal
	)

Hides points whose scalar values falls into an interval.

Values are taken from the current OUTPUT scalar field.

Parameters

minVal	minimum value (below, points are hidden)
maxVal	maximum value (above, points are hidden)

◆ initLOD()

bool ccPointCloud::initLOD ( )

Initializes the LOD structure.

Returns: success

◆ operator+=()

const ccPointCloud & ccPointCloud::operator+= ( ccPointCloud * addedCloud )

Fuses another 3D entity with this one.

All the main features of the given entity are added, except from the octree and the points visibility information. Those features are deleted on this cloud.

◆ partialClone()

ccPointCloud * ccPointCloud::partialClone	(	const CCCoreLib::ReferenceCloud *	selection,
		int *	warnings = `nullptr`
	)		const

Creates a new point cloud object from a ReferenceCloud (selection)

"Reference clouds" are a set of indexes referring to a real point cloud. See CClib documentation for more information about ReferenceClouds. Warning: the ReferenceCloud structure must refer to this cloud.

Parameters

	selection	a ReferenceCloud structure (pointing to source)
[out]	warnings	[optional] to determine if warnings (CTOR_ERRORS) occurred during the duplication process

◆ reserve()

bool ccPointCloud::reserve ( unsigned numberOfPoints )

override

Reserves memory for all the active features.

This method is meant to be called before increasing the cloud population. Only the already allocated features will be re-reserved.

Returns: true if ok, false if there's not enough memory

◆ reserveTheNormsTable()

bool ccPointCloud::reserveTheNormsTable ( )

Reserves memory to store the compressed normals.

Before adding normals to the cloud (with addNorm()) be sure to reserve the necessary amount of memory with this method. This method reserves memory for as many normals as the number of points in the cloud (effectively stored or reserved).

Returns: true if ok, false if there's not enough memory

◆ reserveThePointsTable()

bool ccPointCloud::reserveThePointsTable ( unsigned _numberOfPoints )

Reserves memory to store the points coordinates.

Before adding points to the cloud (with addPoint()) be sure to reserve the necessary amount of memory with this method. If the number of new elements is smaller than the actual one, nothing will happen.

Parameters

_numberOfPoints number of points to reserve the memory for

Returns: true if ok, false if there's not enough memory

◆ reserveTheRGBTable()

bool ccPointCloud::reserveTheRGBTable ( )

Reserves memory to store the RGB colors.

Before adding colors to the cloud (with addColor()) be sure to reserve the necessary amount of memory with this method. This method reserves memory for as many colors as the number of points in the cloud (effectively stored or reserved).

Returns: true if ok, false if there's not enough memory

◆ resize()

bool ccPointCloud::resize ( unsigned numberOfPoints )

override

Resizes all the active features arrays.

This method is meant to be called after having increased the cloud population (if the final number of inserted point is lower than the reserved size). Otherwise, it fills all new elements with blank values.

Returns: true if ok, false if there's not enough memory

◆ resizeTheNormsTable()

bool ccPointCloud::resizeTheNormsTable ( )

Resizes the compressed normals array.

If possible, the normals array is resized to fit exactly the number of points in the cloud (effectively stored or reserved). If the new size is inferior to the actual one, the last elements will be deleted. Otherwise, the array is filled with blank elements.

Warning: don't try to "add" any element on a resized array...

Returns: true if ok, false if there's not enough memory

◆ resizeTheRGBTable()

bool ccPointCloud::resizeTheRGBTable ( bool fillWithWhite = false )

Resizes the RGB colors array.

If possible, the colors array is resized to fit exactly the number of points in the cloud (effectively stored or reserved). If the new size is inferior to the actual one, the last elements will be deleted. Otherwise, the array is filled with zeros (default behavior) or "white" colors (is fillWithWhite).

Warning: don't try to "add" any element on a resized array...

Parameters

fillWithWhite whether to fill new array elements with zeros (false) or white color (true)

Returns: true if ok, false if there's not enough memory

◆ setColor() [1/3]

bool ccPointCloud::setColor	(	ColorCompType	r,
		ColorCompType	g,
		ColorCompType	b,
		ColorCompType	a = `ccColor::MAX`
	)

inline

Set a unique color for the whole cloud (shortcut)

Color array is automatically allocated if necessary.

Parameters

r	red component
g	green component
b	blue component
a	alpha component

Returns: success

◆ setColor() [2/3]

bool ccPointCloud::setColor ( const ccColor::Rgb & col )

inline

Set a unique color for the whole cloud (RGB version)

Color array is automatically allocated if necessary.

Parameters

col RGB color

Returns: success

◆ setColor() [3/3]

bool ccPointCloud::setColor ( const ccColor::Rgba & col )

Set a unique color for the whole cloud (RGBA version)

Color array is automatically allocated if necessary.

Parameters

col	RGBA color

Returns: success

◆ setCurrentDisplayedScalarField()

void ccPointCloud::setCurrentDisplayedScalarField ( int index )

Sets the currently displayed scalar field.

Warning: this scalar field will automatically be set as the OUTPUT one!

◆ setPointColor() [1/2]

void ccPointCloud::setPointColor	(	unsigned	pointIndex,
		const ccColor::Rgb &	col
	)

inline

Sets a particular point color.

Warning: colors must be enabled.

◆ setPointColor() [2/2]

void ccPointCloud::setPointColor	(	unsigned	pointIndex,
		const ccColor::Rgba &	col
	)

Sets a particular point color.

Warning: colors must be enabled.

◆ setPointNormal()

void ccPointCloud::setPointNormal	(	unsigned	pointIndex,
		const CCVector3 &	N
	)

Sets a particular point normal (shortcut)

Warning: normals must be enabled. Normal is automatically compressed before storage.

◆ setPointNormalIndex()

void ccPointCloud::setPointNormalIndex	(	unsigned	pointIndex,
		CompressedNormType	norm
	)

Sets a particular point compressed normal.

Warning: normals must be enabled.

◆ setRGBColorByBanding()

bool ccPointCloud::setRGBColorByBanding	(	unsigned char	dim,
		double	freq
	)

Assigns color to points by 'banding'.

Banding is performed along the specified dimension Color array is automatically allocated if necessary.

Parameters

dim	banding dimension (0:X, 1:Y, 2:Z)
freq	banding frequency

Returns: success

◆ setRGBColorByHeight()

bool ccPointCloud::setRGBColorByHeight	(	unsigned char	heightDim,
		ccColorScale::Shared	colorScale
	)

Assigns color to points proportionally to their 'height'.

Height is defined wrt to the specified dimension (heightDim). Color array is automatically allocated if necessary.

Parameters

heightDim	ramp dimension (0:X, 1:Y, 2:Z)
colorScale	color scale to use

Returns: success

◆ swapPoints()

void ccPointCloud::swapPoints	(	unsigned	firstIndex,
		unsigned	secondIndex
	)

overrideprotected

Warning: Doesn't handle scan grids!

◆ translate()

void ccPointCloud::translate ( const CCVector3 & T )

Translates cloud.

Parameters

T	translation vector

◆ triangulateGrid()

ccMesh * ccPointCloud::triangulateGrid	(	const Grid &	grid,
		double	minTriangleAngle_deg = `0.0`
	)		const

Meshes a scan grid.

Warning: The mesh vertices will be this cloud instance!

◆ unallocatePoints()

void ccPointCloud::unallocatePoints ( )

Erases the cloud points.

Prefer ccPointCloud::clear by default.

Warning: DANGEROUS

◆ unroll()

ccPointCloud * ccPointCloud::unroll	(	UnrollMode	mode,
		UnrollBaseParams *	params,
		bool	exportDeviationSF = `false`,
		double	startAngle_deg = `0.0`,
		double	stopAngle_deg = `360.0`,
		CCCoreLib::GenericProgressCallback *	progressCb = `nullptr`
	)		const

Unrolls the cloud and its normals on a cylinder or a cone.

This method is redundant with the "developCloudOnCylinder" method of CCCoreLib, apart that it can also handle the cloud normals.

Parameters

mode	unrolling mode
params	unrolling parameters (must match the unrolling mode)
exportDeviationSF	to export the deviation fro the ideal cone as a scalar field
startAngle_deg	start angle (in degrees) - 0 corresponds to +X (east)
stopAngle_deg	stop angle (in degrees)
progressCb	for progress notification

Returns: the unrolled point cloud

Member Data Documentation

◆ m_visibilityCheckEnabled

bool ccPointCloud::m_visibilityCheckEnabled

protected

Whether visibility check is available or not (during comparison)

See ccPointCloud::testVisibility

The documentation for this class was generated from the following files:

ccPointCloud.h
ccPointCloud.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ccPointCloud()

Member Function Documentation

◆ addColor() [1/3]

◆ addColor() [2/3]

◆ addColor() [3/3]

◆ addGreyColor()

◆ addNorm()

◆ addNormAtIndex()

◆ addNormIndex()

◆ addScalarField()

◆ append()

◆ clear()

◆ cloneThis()

◆ colorize()

◆ compressFWFData()

◆ computeCPSet()

◆ computeGravityCenter()

◆ computeNormalsWithGrids()

◆ convertCurrentScalarFieldToColors()

◆ convertNormalToDipDirSFs()

◆ convertNormalToRGB()

◆ convertRGBToGreyScale()

◆ createNewCloudFromVisibilitySelection()

◆ crop2D()

◆ enableVisibilityCheck()

◆ filterPointsByScalarValue()

◆ From() [1/2]

◆ From() [2/2]

◆ hidePointsByScalarValue()

◆ initLOD()

◆ operator+=()

◆ partialClone()

◆ reserve()

◆ reserveTheNormsTable()

◆ reserveThePointsTable()

◆ reserveTheRGBTable()

◆ resize()

◆ resizeTheNormsTable()

◆ resizeTheRGBTable()

◆ setColor() [1/3]

◆ setColor() [2/3]

◆ setColor() [3/3]

◆ setCurrentDisplayedScalarField()

◆ setPointColor() [1/2]

◆ setPointColor() [2/2]

◆ setPointNormal()

◆ setPointNormalIndex()

◆ setRGBColorByBanding()

◆ setRGBColorByHeight()

◆ swapPoints()

◆ translate()

◆ triangulateGrid()

◆ unallocatePoints()

◆ unroll()

Member Data Documentation

◆ m_visibilityCheckEnabled
