A scalar field associated to display-related parameters. More...

#include <ccScalarField.h>

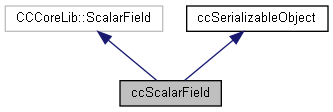

Inheritance diagram for ccScalarField:

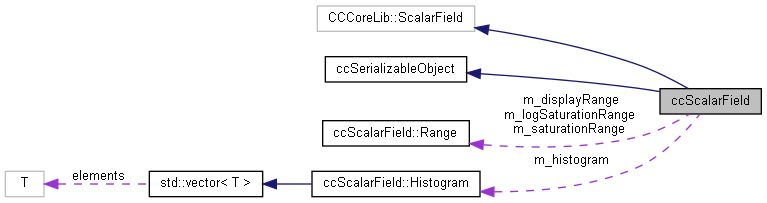

Collaboration diagram for ccScalarField:

[legend]

Classes
struct	Histogram
	Simple histogram structure. More...

class	Range
	Scalar field range structure. More...

Public Member Functions
	ccScalarField (const char *name=nullptr)
	Default constructor. More...

	ccScalarField (const ccScalarField &sf)
	Copy constructor. More...

const Range &	displayRange () const
	Access to the range of displayed values. More...

const Range &	saturationRange () const
	Access to the range of saturation values. More...

const Range &	logSaturationRange () const
	Access to the range of log scale saturation values. More...

void	setMinDisplayed (ScalarType val)
	Sets the minimum displayed value.

void	setMaxDisplayed (ScalarType val)
	Sets the maximum displayed value.

void	setSaturationStart (ScalarType val)
	Sets the value at which to start color gradient.

void	setSaturationStop (ScalarType val)
	Sets the value at which to stop color gradient.

const ccColor::Rgb *	getColor (ScalarType value) const
	Returns the color corresponding to a given value (wrt to the current display parameters) More...

const ccColor::Rgb *	getValueColor (unsigned index) const
	Shortcut to getColor.

void	showNaNValuesInGrey (bool state)
	Sets whether NaN/out of displayed range values should be displayed in grey or hidden.

bool	areNaNValuesShownInGrey () const
	Returns whether NaN values are displayed in grey or hidden.

void	alwaysShowZero (bool state)
	Sets whether 0 should always appear in associated color ramp or not.

bool	isZeroAlwaysShown () const
	Returns whether 0 should always appear in associated color ramp or not.

void	setSymmetricalScale (bool state)
	Sets whether the color scale should be symmetrical or not. More...

bool	symmetricalScale () const
	Returns whether the color scale s symmetrical or not. More...

void	setLogScale (bool state)
	Sets whether scale is logarithmic or not.

bool	logScale () const
	Returns whether scalar field is logarithmic or not.

void	computeMinAndMax () override

const ccColorScale::Shared &	getColorScale () const
	Returns associated color scale.

void	setColorScale (ccColorScale::Shared scale)
	Sets associated color scale.

unsigned	getColorRampSteps () const
	Returns number of color ramp steps.

void	setColorRampSteps (unsigned steps)
	Sets number of color ramp steps used for display.

const Histogram &	getHistogram () const
	Returns associated histogram values (for display)

bool	mayHaveHiddenValues () const
	Returns whether the scalar field in its current configuration MAY have 'hidden' values or not. More...

void	setModificationFlag (bool state)
	Sets modification flag state.

bool	getModificationFlag () const
	Returns modification flag state.

void	importParametersFrom (const ccScalarField *sf)
	Imports the parameters from another scalar field.

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

bool	toFile (QFile &out) const override
	Saves data to binary stream. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads data from binary stream. More...

double	getGlobalShift () const
	Returns the global shift (if any)

void	setGlobalShift (double shift)
	Sets the global shift.

Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor.

virtual bool	isSerializable () const
	Returns whether object is serializable of not. More...

virtual bool	toFile (QFile &out) const
	Saves data to binary stream. More...

virtual bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap)
	Loads data from binary stream. More...

Protected Member Functions
	~ccScalarField () override=default
	Default destructor. More...

void	updateSaturationBounds ()
	Updates saturation values.

ScalarType	normalize (ScalarType val) const
	Normalizes a scalar value between 0 and 1 (wrt to current parameters) More...

Protected Attributes
Range	m_displayRange
	Displayed values range.

Range	m_saturationRange
	Saturation values range. More...

Range	m_logSaturationRange
	saturation values range (log scale mode) More...

bool	m_showNaNValuesInGrey
	Whether NaN values are shown in grey or are hidden.

bool	m_symmetricalScale
	Whether color scale is symmetrical or not. More...

bool	m_logScale
	Whether scale is logarithmic or not.

bool	m_alwaysShowZero
	Whether 0 should always appear in associated color ramp.

ccColorScale::Shared	m_colorScale
	Active color ramp (for display)

unsigned	m_colorRampSteps
	Number of color ramps steps (for display)

Histogram	m_histogram
	Associated histogram values (for display)

bool	m_modified
	Modification flag. More...

double	m_globalShift
	Global shift.

Additional Inherited Members
Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS = 1 , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...

typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID)

Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...

static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...

static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...

static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Detailed Description

A scalar field associated to display-related parameters.

Extends the CCCoreLib::ScalarField object.

Constructor & Destructor Documentation

◆ ccScalarField() [1/2]

ccScalarField::ccScalarField ( const char * name = nullptr )

explicit

Default constructor.

Parameters

name	scalar field name

◆ ccScalarField() [2/2]

ccScalarField::ccScalarField ( const ccScalarField & sf )

Copy constructor.

Parameters

sf	scalar field to copy

Warning: May throw a std::bad_alloc exception

◆ ~ccScalarField()

ccScalarField::~ccScalarField ( )

overrideprotecteddefault

Default destructor.

Call release instead

Member Function Documentation

◆ displayRange()

const Range & ccScalarField::displayRange ( ) const

inline

Access to the range of displayed values.

Values outside of the [start;stop] interval will either be grey or invisible (see showNaNValuesInGrey).

◆ fromFile()

bool ccScalarField::fromFile	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

overridevirtual

Loads data from binary stream.

Parameters

in	input file (already opened)
dataVersion	file version
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Returns: success

Reimplemented from ccSerializableObject.

◆ getColor()

const ccColor::Rgb * ccScalarField::getColor ( ScalarType value ) const

inline

Returns the color corresponding to a given value (wrt to the current display parameters)

Warning: must no be called if the SF is not associated to a color scale!

◆ isSerializable()

bool ccScalarField::isSerializable ( ) const

inlineoverridevirtual

Returns whether object is serializable of not.

Reimplemented from ccSerializableObject.

◆ logSaturationRange()

const Range & ccScalarField::logSaturationRange ( ) const

inline

Access to the range of log scale saturation values.

Relative color scales will only be applied to values inside the [start;stop] interval.

◆ mayHaveHiddenValues()

bool ccScalarField::mayHaveHiddenValues ( ) const

Returns whether the scalar field in its current configuration MAY have 'hidden' values or not.

'Hidden' values are typically NaN values or values outside of the 'displayed' interval while those values are not displayed in grey (see ccScalarField::showNaNValuesInGrey).

◆ normalize()

ScalarType ccScalarField::normalize ( ScalarType val ) const

protected

Normalizes a scalar value between 0 and 1 (wrt to current parameters)

Parameters

val	scalar value

Returns: a number between 0 and 1 if inside displayed range or -1 otherwise

ValidValue(d) ||

◆ saturationRange()

const Range & ccScalarField::saturationRange ( ) const

inline

Access to the range of saturation values.

Relative color scales will only be applied to values inside the [start;stop] interval.

◆ setSymmetricalScale()

void ccScalarField::setSymmetricalScale ( bool state )

Sets whether the color scale should be symmetrical or not.

For relative color scales only.

◆ symmetricalScale()

bool ccScalarField::symmetricalScale ( ) const

inline

Returns whether the color scale s symmetrical or not.

For relative color scales only.

◆ toFile()

bool ccScalarField::toFile ( QFile & out ) const

overridevirtual

Saves data to binary stream.

Parameters

out	output file (already opened)

Returns: success

Reimplemented from ccSerializableObject.

Member Data Documentation

◆ m_logSaturationRange

Range ccScalarField::m_logSaturationRange

protected

saturation values range (log scale mode)

For log scale color mapping with relative scales.

◆ m_modified

bool ccScalarField::m_modified

protected

Modification flag.

Any modification to the scalar field values or parameters will turn this flag on.

◆ m_saturationRange

Range ccScalarField::m_saturationRange

protected

Saturation values range.

For color mapping with relative scales.

◆ m_symmetricalScale

bool ccScalarField::m_symmetricalScale

protected

Whether color scale is symmetrical or not.

For relative color scales only.

The documentation for this class was generated from the following files:

ccScalarField.h
ccScalarField.cpp
